The device is a masked maker, consisting of a piecewriter, an earband welder, a material rack, which requires only one operator to operate the entire production.

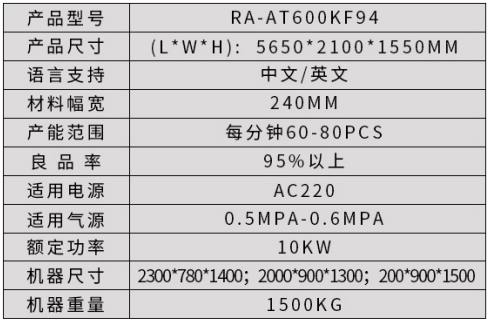

Automation of 3D stereofish mask KF94 to support 3-5 layer mask production

Mainly, it consists of rolls, folding pressure, nose banding, mask formation, mask cutting, wire cutting, earband welding, etc., and completes the entire production from raw materials to fish-type masking products.

1. Fabric frame component

The material frame is made of a combination of 4080 aluminium-type materials, which are equipped with four rotation axes of fabric with brakes at the end of the axis, which can be adjusted to the size of the tension to ensure that the material is not wrinkled.

2. Upper nose segment

The length of the nose beams, which are delivered through a chain-wheel-drive-carrying vessel, using the friction of the pack, can be regulated by the horn of the cam.

3. Exterior melting component

Welding effects can be achieved through close contact with fabric through ultrasound mimolecs, vagrants, and maintenance of a certain pressure, with a frequency of 15K.

4. Collapse

Collapse fabric by folding components

5. Exterior cutters

Custom cutter, roll-on, mask first.

6. Flip

The mask turned over and prepared for the earband.

VII. SECTION

Rational distribution, increased capacity

8. Earband section

It's for the hood industry. Welded the earband to a semi-finished product with ultrasound.

Collection component

Leather belts, product collection, linked to packaging machines (this product does not contain packaging machines)
